A-PRO Series Flanged Filters & Water Separators
900 to 3000 SCFM
Altec AIR’s A-PRO Series High Efficiency Compressed Air Filters feature an innovative modular design and provide a flexible, reliable, and compact compressed air filtration solution.
Our A-PRO Series Water Separator uses centrifugal force to remove bulk water found in compressed air systems to avert water contamination.
- Compact & Modular Design - 65% lighter & 45% smaller than comparitive fabricated models
- High Efficiency - Filtration media delivers optimum performance in line with quality standard ISO 8573-1:2010(E)
- Unique Cetrifugal Water Separator Modules - Remove 99% of bulk water when tested in accordance with ISO 8573-9
- Reduced Service Time - Top loading Filter design for easy access to the Filter Element
- Externally Accessible Drain Valves - Unique easy access drain can be removed externally and is standard on all models
| Standard Features: |
|---|
|
| Optional Features: | |
|---|---|
|
|
| Complete Filters - Flanged: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A*-PRO- 0900** |
A*-PRO- 1250** |
A*-PRO- 1500** |
A*-PRO- 1800** |
A*-PRO- 2500** |
A*-PRO- 3000** |
|||||
| Flow Capacity (SCFM @ 100 PSIG) |
900 | 1250 | 1500 | 1800 | 2500 | 3000 | ||||
| Connection | 3" Flanged | 4" Flanged | ||||||||
| Minimum / Maximum Recommended Operating Temperature |
35°F (1.5°C) / 176°F (80°C) | |||||||||
| Maximum Working Pressure | 232 PSIG (16 barg) | |||||||||
| Replacement Filter Element | EX0900* | EX1250* | EX1500* | EX1800* | EX2500* | EX3000* | ||||
| Number of Elements | 1 | 2 | ||||||||
| * Indicates either C for Coalescing or P for Particulate reverse flow ** Indicates Grade (X5, X1, XA, AC) Click the Element Classes Tab (above) to view Filter Element Class Details |
||||||||||

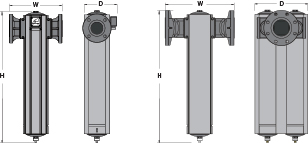

| Dimensions: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Weight | Height | Width | Depth | ||||||
| A*-PRO-0900** | 37 lbs (16.7 kg) |
25.6" (650 mm) |
13.9" (352 mm) |
8.5" (217 mm) |
|||||
| A*-PRO-1250** | 45 lbs (20.4 kg) |
34.3" (870 mm) |
|||||||
| A*-PRO-1500** | 56 lbs (22.9 kg) |
40.4" (1027 mm) |
|||||||
| A*-PRO-1800** | 68 lbs (30.8 kg) |
25.6" (650 mm) |
18.0" (457 mm) |
13.5" (343 mm) |
|||||
| A*-PRO-2500** | 83 lbs (34.3 kg) |
34.3" (870 mm) |
|||||||
| A*-PRO-3000** | 93 lbs (42.3 kg) |
40.4" (1027 mm) |
|||||||
| * Indicates either C for Coalescing or P for Particulate reverse flow ** Indicates Grade (X5, X1, XA, AC) Click the Element Classes Tab (above) to view Filter Element Class Details |
|||||||||
Filter Modules are supplied without flanged connection ports and include one set of slim-line connectors to allow multi-banking of filter housings.
| Filter Modules: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A*-PRO- 0900** |
A*-PRO- 1250** |
A*-PRO- 1500** |
A*-PRO- 1800** |
A*-PRO- 2500** |
A*-PRO- 3000** |
|||||
| Flow Capacity (SCFM @ 100 PSIG) |
900 | 1250 | 1500 | 1800 | 2500 | 3000 | ||||
| Minimum / Maximum Recommended Operating Temperature |
35°F (1.5°C) / 176°F (80°C) | |||||||||
| Maximum Working Pressure | 232 PSIG (16 barg) | |||||||||
| Replacement Filter Element | EX0900* | EX1250* | EX1500* | EX1800* | EX2500* | EX3000* | ||||
| Number of Elements | 1 | 2 | ||||||||
| * Indicates either C for Coalescing or P for Particulate reverse flow ** Indicates Grade (X5, X1, XA, AC) Click the Element Classes Tab (above) to view Filter Element Class Details |
||||||||||
| Dimensions: | ||||
|---|---|---|---|---|
| Weight | Height | Width | Depth | |
| A*-PRO-0900** | 25 lbs (11.2 kg) |
25.6" (650 mm) |
6.1" (168 mm) |
8.5" (217 mm) |
| A*-PRO-1250** | 33 lbs (14.9 kg) |
34.3" (870 mm) |
||
| A*-PRO-1500** | 38 lbs (17.4 kg) |
40.4" (1027 mm) |
||
| A*-PRO-1800** | 45 lbs (20.4 kg) |
25.6" (650 mm) |
13.5" (343 mm) |
|
| A*-PRO-2500** | 60 lbs (27.3 kg) |
34.3" (870 mm) |
||
| A*-PRO-3000** | 70 lbs (31.9 kg) |
40.4" (1027 mm) |
||
| * Indicates either C for Coalescing or P for Particulate reverse flow ** Indicates Grade (X5, X1, XA, AC) Click the Element Classes Tab (above) to view Filter Element Class Details |
||||
| Filter Element Classes** : | ||||
|---|---|---|---|---|
| X5 | X1 | XA | AC | |
| Particle Removal | 5 micron | 1 micron | 0.01 micron | 0.01 micron |
| Maximum Particle Size Class * | 3 | 2 | 1 | 1 |
| Maximum Oil Content | 4 | 2 | 1 | 1 |
| Maximum Oil Carryover (at 68°F) |
5 mg/m3 | 0.1 mg/m3 | 0.1 mg/m3 | 0.003 mg/m3 |
| Pressure Loss: Clean & Dry (PSI) |
0.6 | 1.1 | 1.5 | 1.1 |
| Pressure Loss: Saturated (PSI) |
1.1 | 2.2 | 4.4 | - |
| Pressure Loss: Element Change (PSI) |
6 | 6 | 6 | 1000 hours / 6 months |
| Maximum Temperature | 176°F (50°C) | 122°F (80°C) | ||
| Maximum Working Pressure | 232 PSIG (16 barg) | |||
| Element End Cap Color | Green | Red | Blue | Black |
| * To ISO 8573-1:2010(E) | ||||
| Complete Water Separators - Flanged: | ||||
|---|---|---|---|---|
| AW-PRO-1500 | AW-PRO-3000 | |||
| Flow Capacity (SCFM @ 100 PSIG) |
1500 | 3000 | ||
| Connection | 3" Flanged | 4" Flanged | ||
| Minimum / Maximum Recommended Operating Temperature |
35°F (1.5°C) / 176°F (80°C) | |||
| Maximum Working Pressure | 232 PSIG (16 barg) | |||
| Dimensions: | ||||
|---|---|---|---|---|
| Weight | Height | Width | Depth | |
| AW-PRO-1500 | 35 lbs (15.7 kg) |
25.6" (650 mm) |
13.9" (352 mm) |
6.7" (171 mm) |
| AW-PRO-1500 | 65 lbs (29.3.9 kg) |
18.0" (457 mm) |
13.5" (343 mm) |
|
