CDA Series Compressed Dry Air Packages

CDA Series

Compressed Dry Air Packages

Request a Quote Download Spec Sheet

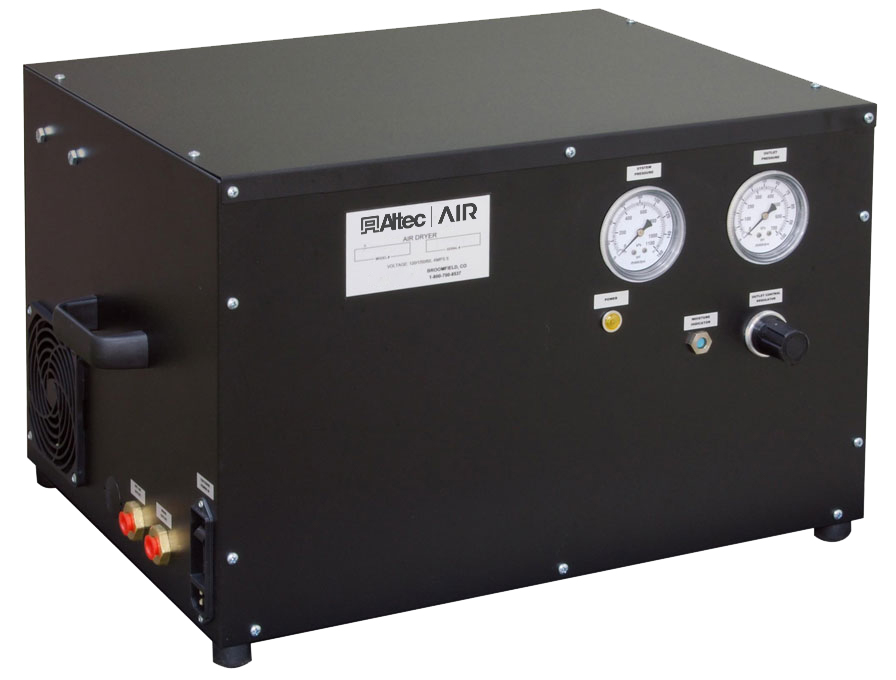

Altec AIR’s Clean Dry Air Package is a complete, enclosed, compact unit, consisting of an Oil-less Air Compressor, Regenerative Desiccant Air Dryer, Regulator, Coalescing and Particulate Filters. This packages is great for applications requiring low volumes of clean, dry compressed air at pressures up to 75 PSIG.

Standard Features:
  • Reliable oil-less Compressor to assure oil-free air at all times.
  • Equipped with Rocking Piston Pump technology for long interval times between maintenance and easy service.
  • Proven Regenerative Desiccant Heatless Air Dryer uses dual tower technology for continuous dry air supply.
General Specifications:
CDA10 CDA10-2
Output Capacity Normal: 5 LPM Continuous
Maximum: 10 LPM Emergency
Power Requirements
(15 Amp Service Recommended)		 115 VAC, 1 Phase, 50/60 Hz 230 VAC, 1 Phase, 50/60 Hz
Outlet Pressure Range 0 - 75 PSIG (0 - 5.1 bar)
Outlet Dew Point -100°F (-73°C) Atmospheric Dew Point
Compressor Type 1/3 HP, Oil-less, Rocker Piston
Dehydrating Method Heatless Desiccant
Environment Operating Temperature Range Minimum: 33°F (1°C)
Optimal: 70°F (21°C)
Maximum: 120°F (49°C)
Outlet Connection 1/4" NPT x 1/4" Press-to-Lock Tube Fitting
Drain Connection 1/4" NPT x 3/8" Press-to-Lock Tube Fitting
Dimensions 18" D x 24" W x 14" H (45.7 cm D x 61.0 cm W x 35.6 cm H)
Weight 72 lbs (32.7 kgs)
